IMX415 8MP USB Camera Module — 4K, Autofocus, Type-C, Driver-Free
Highlight title
Text to highlight a key feature of your product
Description
Description

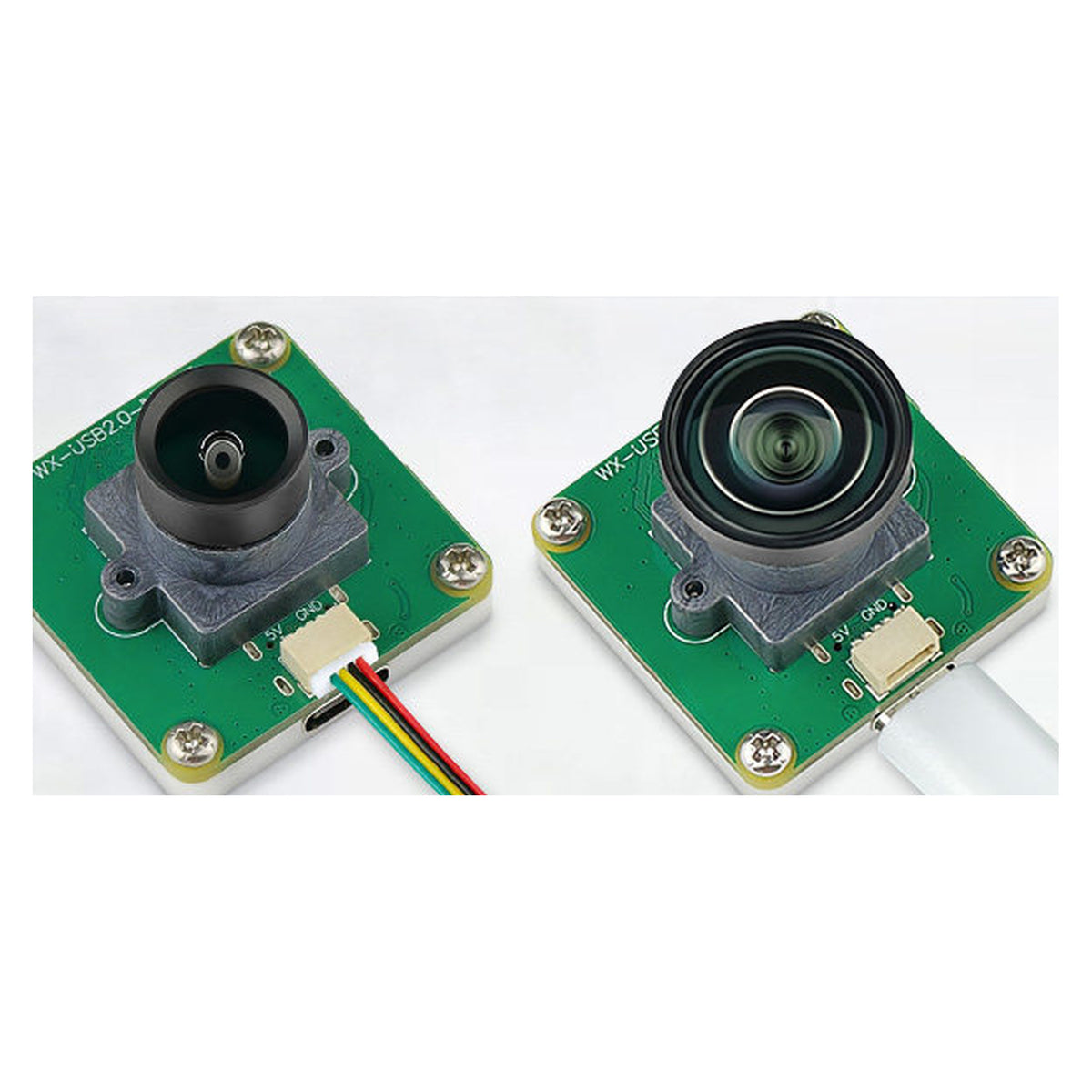

A compact USB camera module built around the IMX415 SENSOR, supplied as model WX-USB2.0-IMX415. It is a 32mm x 32mm board that connects over USB2.0 Type C and needs no driver install.
Two lens options

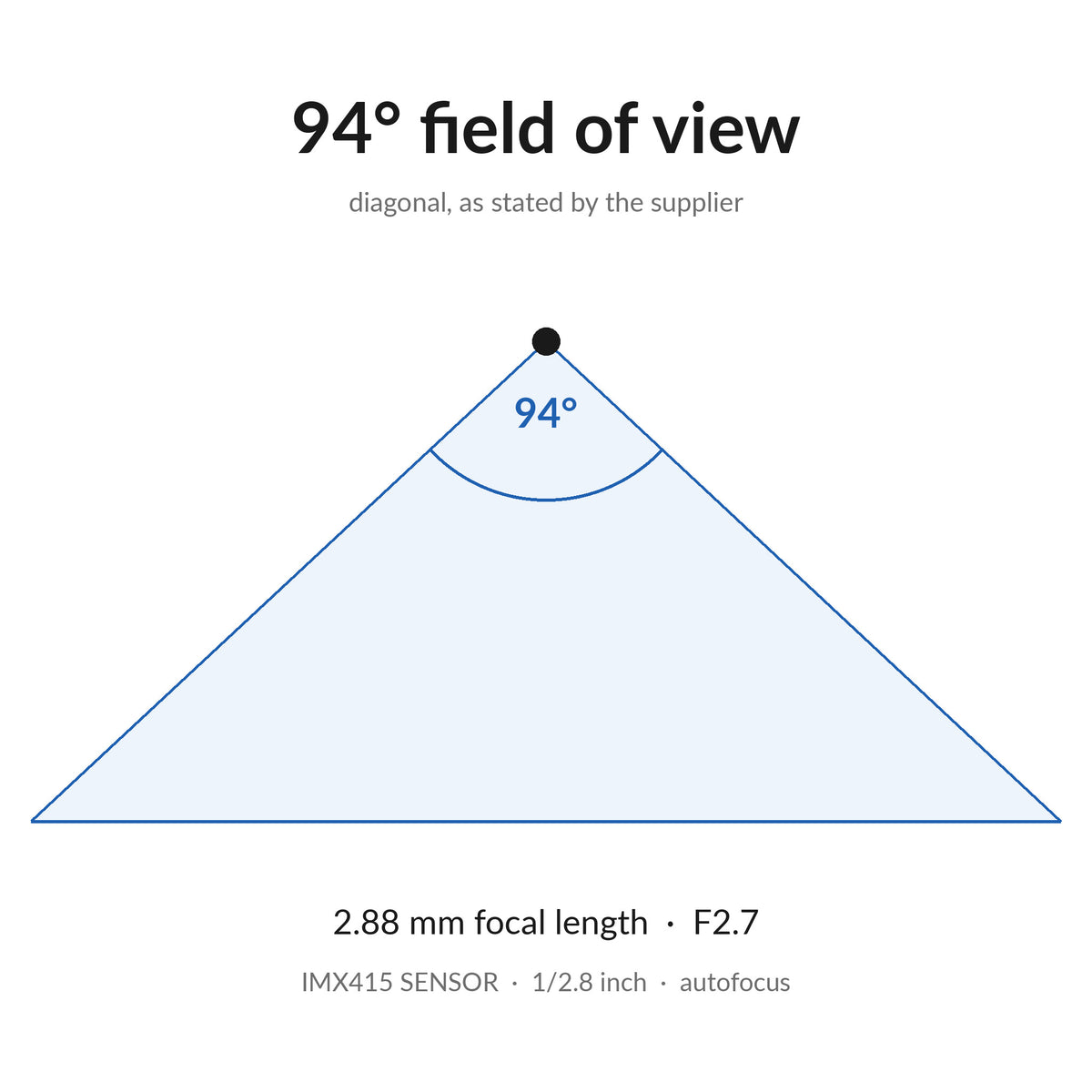

- 94 degree diagonal FOV, 2.88mm focal length, F2.7

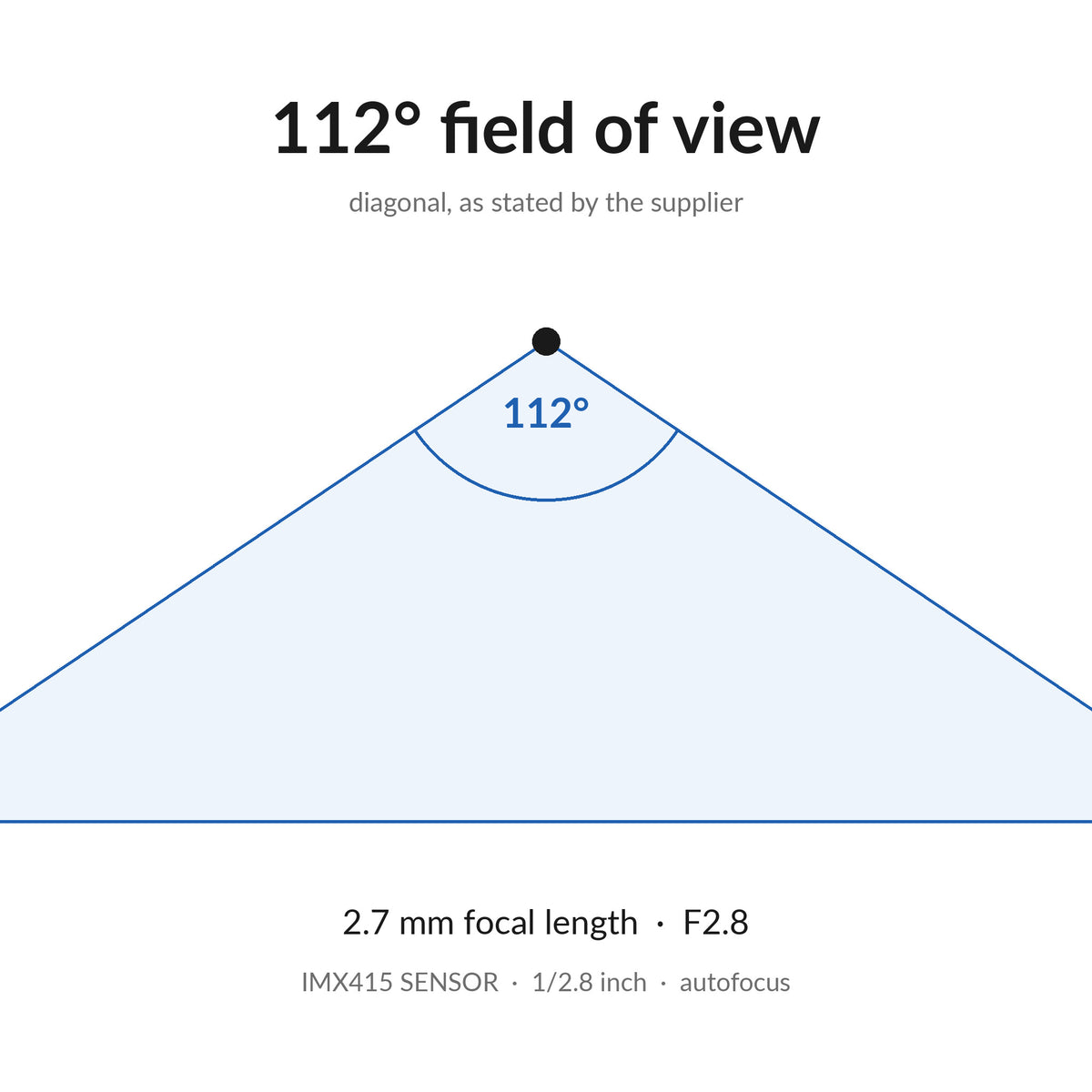

- 112 degree diagonal FOV, 2.7mm focal length, F2.8
Everything else is identical between the two. Pick the option at checkout.

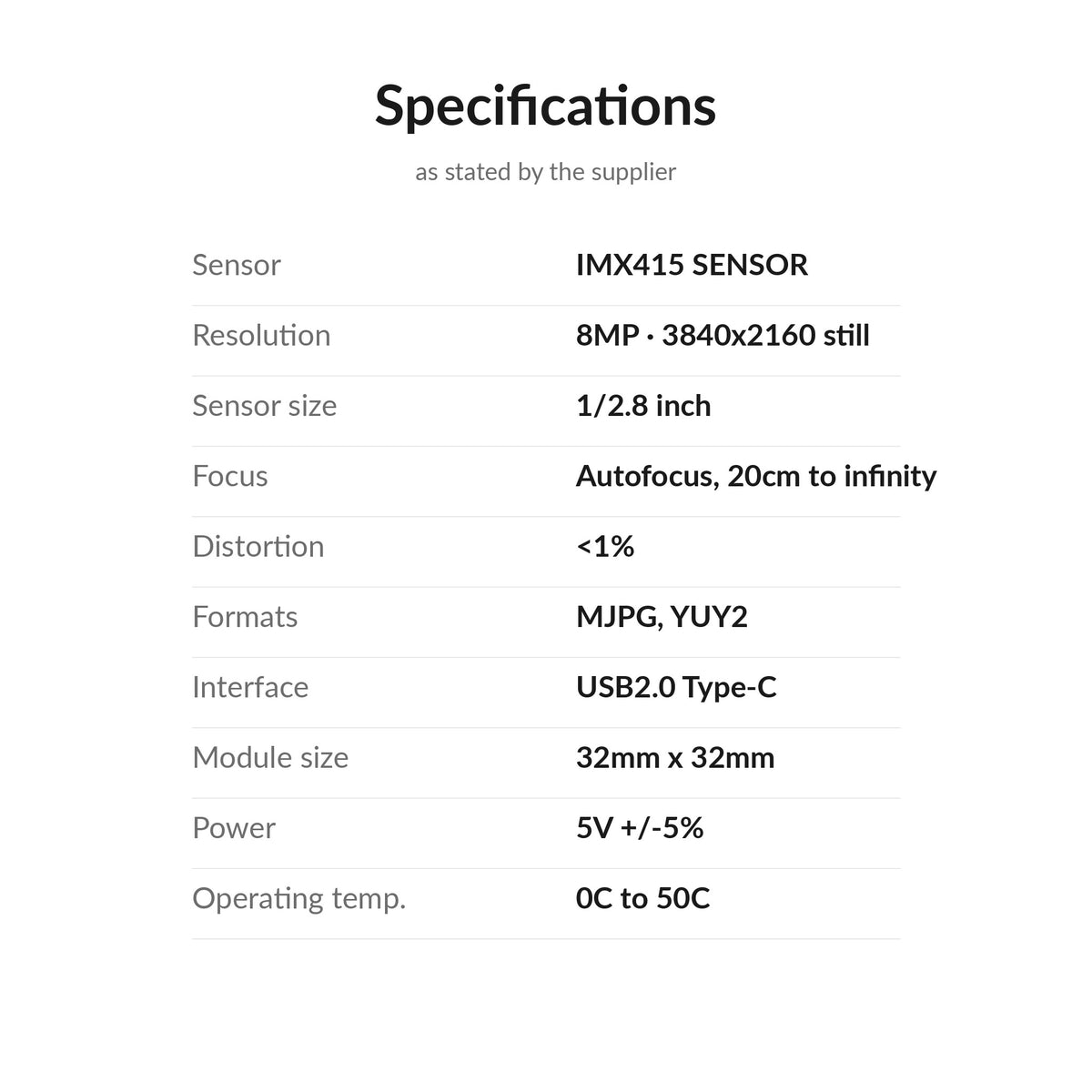

Supplier-stated specifications
- IMX415 SENSOR, 8MP
- 1/2.8 inch sensor
- Still image resolution 3840x2160

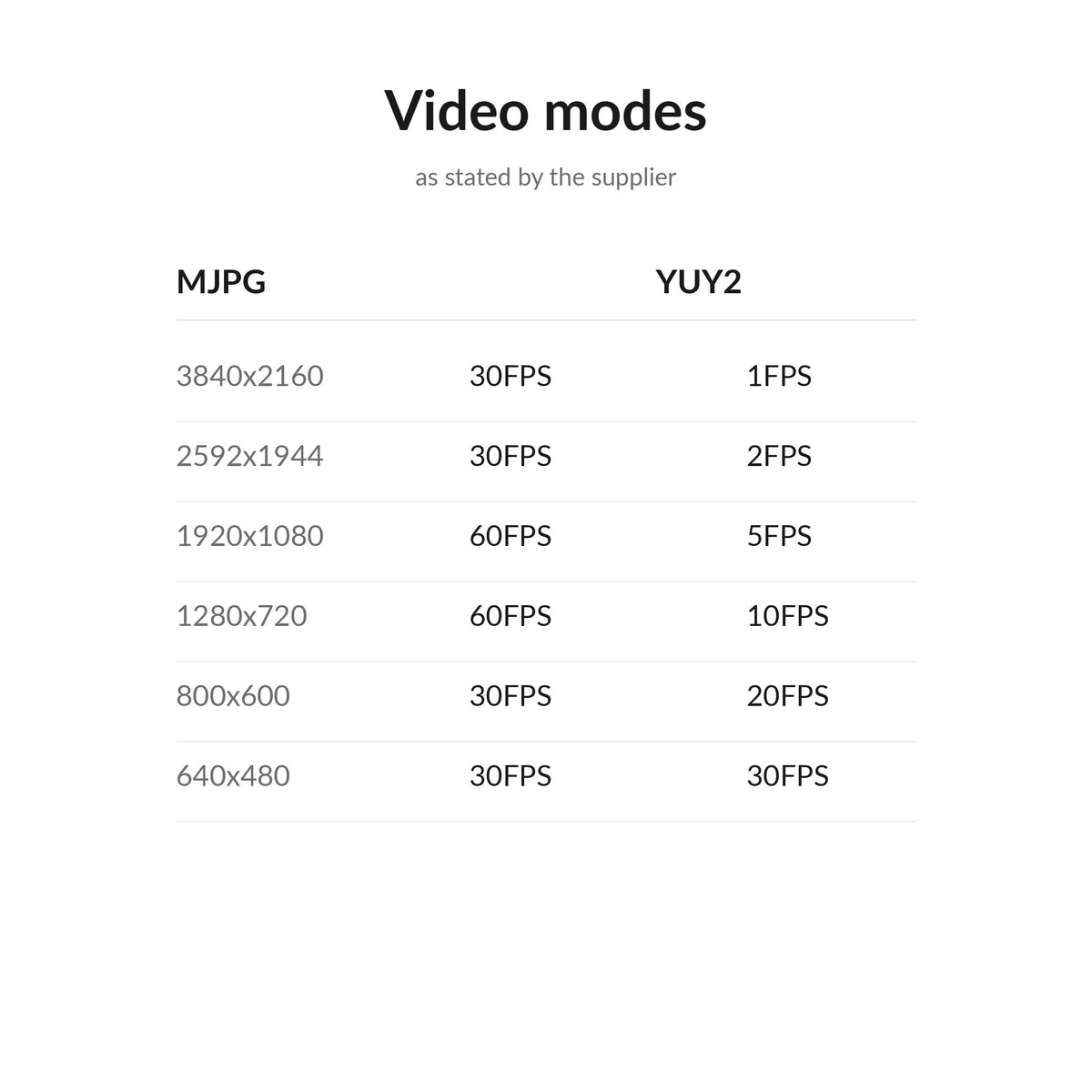

- Video formats: MJPG, YUY2
- MJPG 3840x2160 30FPS, 2592x1944 30FPS, 1920x1080 60FPS, 1280x720 60FPS, 800x600 30FPS, 640x480 30FPS
- YUY2 3840x2160 1FPS, 2592x1944 2FPS, 1920x1080 5FPS, 1280x720 10FPS, 800x600 20FPS, 640x480 30FPS
- Autofocus, best focusing range 20cm to infinity
- Distortion <1%
- 5V +/-5%, 0C to 50C

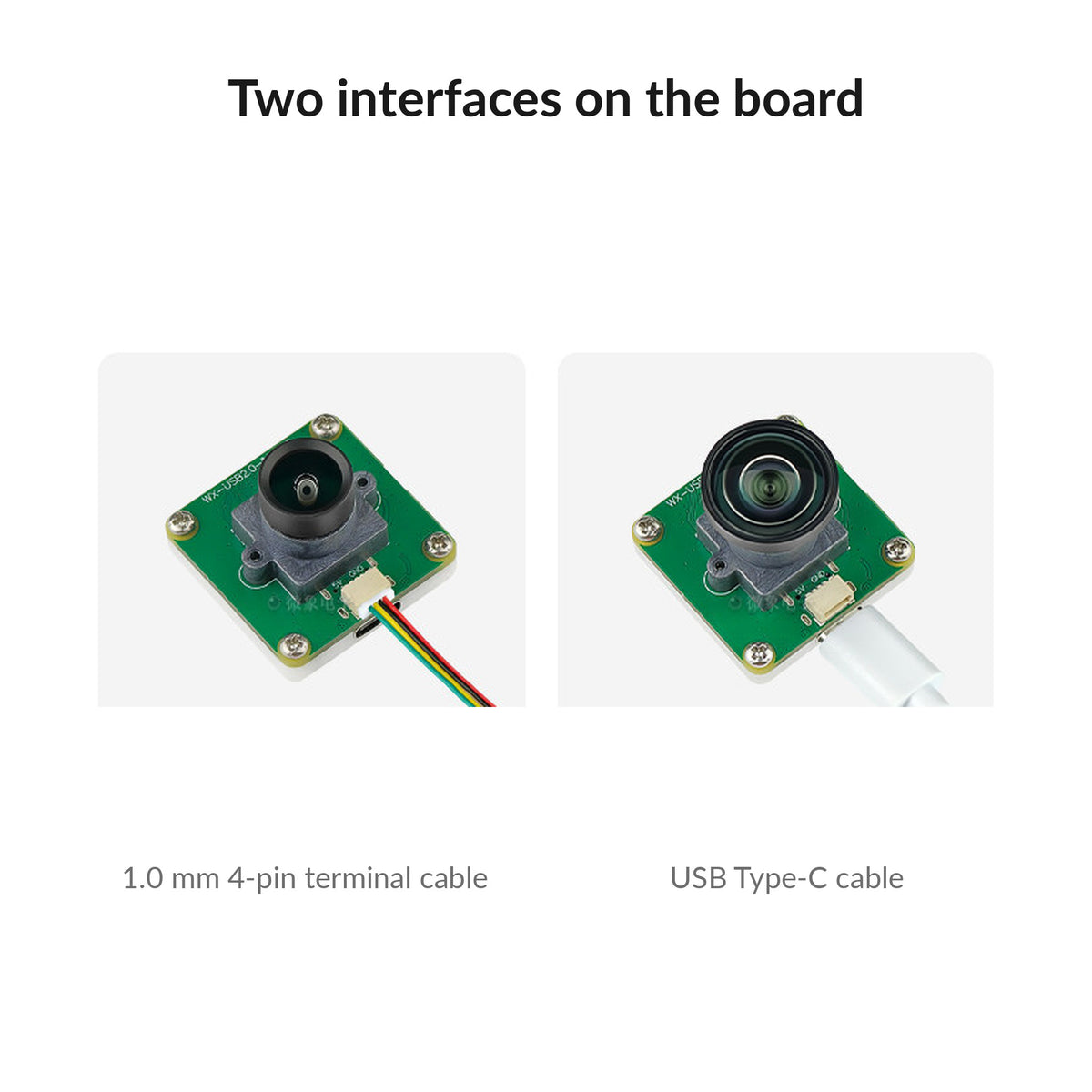

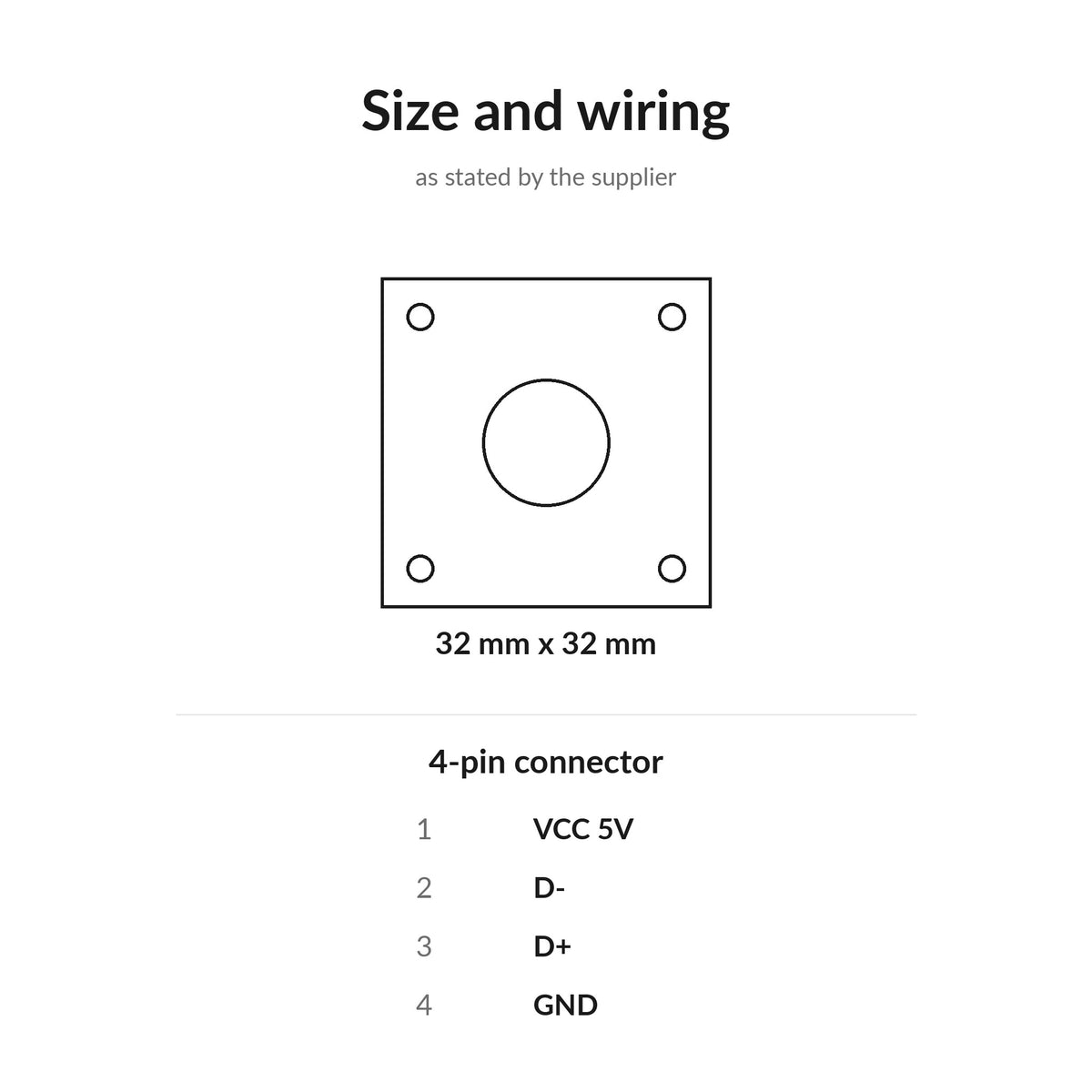

- 4-pin connector: 1 VCC 5V, 2 D-, 3 D+, 4 GND
Systems stated by the supplier
Windows, Linux, Ubuntu, OpenWrt, Raspbian, Jetson, Android and Apple systems.
What is in the box
The camera module only. Per the supplier, images for reference only, Raspberry Pi and Jetson platform products not included.
Made in mainland China.
Not documented by the supplier
- unit weight (the shipping weight on this listing is an unconfirmed estimate)
- cable length
- per-variant inventory and SKU identifiers
- regulatory certifications and approvals
- sensor manufacturer attribution
